Zhejiang Jigong Valve Co., Ltd. is one of the most reliable manufacturers and suppliers of f-port valve ball in China. If you're going to wholesale cheap f-port valve ball made in China, welcome to get pricelist from our factory. All customized products are with high quality and low price.
Basic Introduction

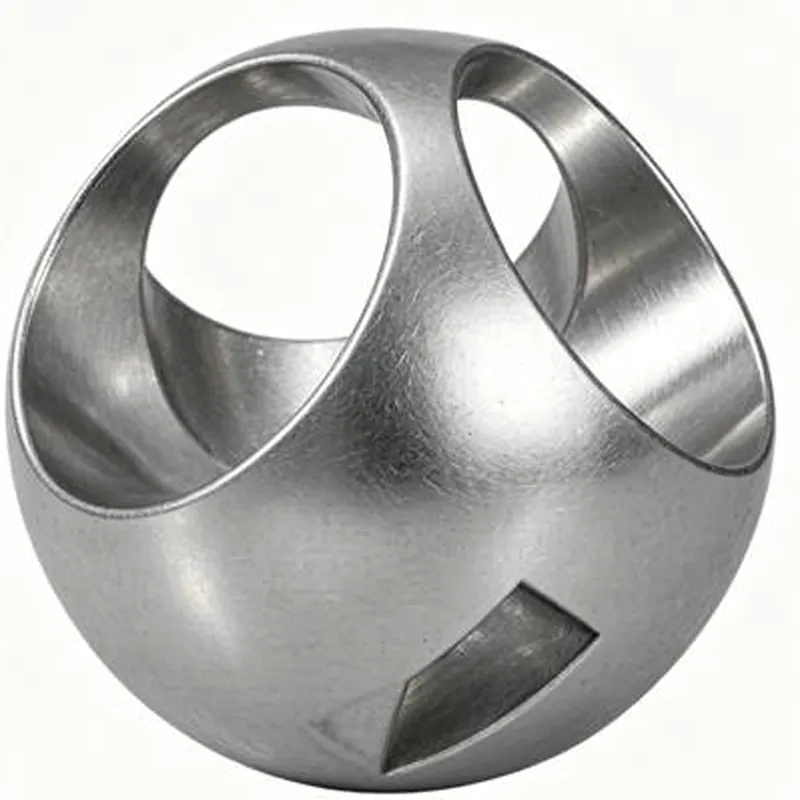

The F-type port valve ball adopts a special F-type flow channel design. Through the local opening and directional flow channel structure, it achieves specific flow distribution, throttling, or directional on-off control. The flow channel profile has been precisely optimized to meet the fluid control requirements under special processes. Its customized flow channel characteristics are particularly suitable for precise throttling, medium distribution, and special flow direction control scenarios in chemical, petroleum refining, and special industrial pipelines.
Product Specification
|
Indicator Item |
Technical Parameters |
|
Size Range |
1/2" to 20" |
|
Pressure Rating |
PN10-PN100(Class150-600) |
|
Sphere Material |
Carbon steel A105N/LF2, austenitic stainless steel 304/316, alloy steel, etc.; for special operating conditions, Hastelloy, Monel alloy, etc. can be selected |
|
Runner Type |
Type F (Customized Throttle / Distribution Flow Channel) |
|
Coaxiality |
≤0.05mm |
|
Roundness Accuracy |
≤0.02mm |
|
Surface Roughness |
Ra ≤ 0.4 μm (sealing surface) |
|
Outer Diameter Tolerance |
1/2" – 4": +0.03 mm |
|
Inner Diameter Tolerance |
1/2" – 4": 0~+0.03 mm |
|
Applicable Temperature |
-196°C to 600°C (depending on the material of the sphere and the sealing material) |
Product Features
- Adopts special F-type flow channels, enabling directional flow guidance and more precise control
- Local opening structure, which can achieve exclusive traffic allocation and throttling
- Precise optimization of the runner profile to meet the requirements of special process control
- Directional on-off is stable, meeting the flow direction control requirements of special fluids
- Strong customization attributes, suitable for non-standard industrial pipeline control scenarios
- Compact structure, suitable for the throttling and distribution requirements of complex processes
Product Application Scope / Usage Scenarios
Applicable Media:
Various fluids suitable for customized flow control in special processes
Applicable Working Conditions:
Special Process Fluid Control, Non-standard Throttling and Distribution Working Conditions
Application Area:
Chemical Industry, Petroleum Refining, Special Industrial Pipelines
FAQ
What kind of flow channel structure does the F-type port valve ball adopt?
Adopts Special F-Type Flow Channel Design.
What control effects can the F-type port valve ball achieve?
It can achieve specific traffic allocation, precise throttling, and directional on-off control.
Is the F-type port valve ball suitable for normal operating conditions?
More suitable for special processes and non-standard flow directions customized control scenarios.
What are the advantages of the flow passage of the F-type port valve ball?
The runner profile has been precisely optimized to meet the fluid control requirements of special processes.
What are the main application areas of F-type port valve balls?
Mainly used for precise throttling and medium distribution in chemical engineering, petroleum refining, and special industrial pipelines.
