Manufacturing Processes
Precision Valve Balls By Machining Method
Valve balls manufactured through CNC machining, forging, casting and welding processes. Each method delivers distinct advantages in precision, strength, cost and delivery for industrial valve applications.
CNC Machining
High-precision turning and grinding for tight tolerances.
Forging
Superior mechanical strength from forged blanks.
Casting
Cost-effective for complex shapes and large sizes.
Welding
Overlay and weldment for special service conditions.
Machining Solutions
Industrial Valve Balls By Manufacturing Process
We produce precision valve balls through multiple manufacturing methods including CNC machining, forging, casting and welding. Each process is selected based on application requirements for precision, strength, cost-efficiency and production volume, serving oil & gas, petrochemical, power generation and industrial valve manufacturers worldwide.
Machining Methods
Product Categories
Explore our valve balls categorized by manufacturing process, each offering distinct advantages for specific industrial applications.
CNC Machined Valve Ball
Precision CNC turning and grinding processes deliver valve balls with tight tolerances and superior surface finish. Ideal for high-precision applications requiring exact sphericity and dimensional accuracy.
- • Tolerance ±0.01mm
- • Superior surface finish Ra0.4
- • High sphericity accuracy
- • Suitable for all materials
Forged Valve Ball
Forged valve balls offer superior mechanical strength and structural integrity. The forging process refines the grain structure, making them ideal for high-pressure and high-stress applications.
- • High mechanical strength
- • Refined grain structure
- • High-pressure resistant
- • Excellent fatigue life
Cast Valve Ball
Cast valve balls provide a cost-effective solution for large-diameter and complex-shaped valve balls. Investment and sand casting methods enable flexible production for various industrial requirements.
- • Cost-effective for large sizes
- • Complex shape capability
- • Investment & sand casting
- • Flexible production volume
Welded Valve Ball
Welded valve balls feature overlay welding or weldment construction for severe service conditions. Hardfacing and cladding techniques enhance wear and corrosion resistance for demanding applications.
- • Hardfacing overlay
- • Corrosion cladding
- • Severe service capable
- • Custom material combinations
Technical Guide
Machining Performance Advantages
Each manufacturing process delivers distinct technical advantages for precision, strength, cost and delivery in industrial valve ball production.
Precision & Tolerance
CNC machining achieves tight tolerances down to ±0.01mm with superior sphericity and surface finish for critical sealing applications.
Material Integrity
Forging refines grain structure and eliminates internal defects, delivering superior mechanical strength and pressure resistance.
Cost Efficiency
Casting and welding processes offer cost-effective solutions for large-diameter and complex-geometry valve balls in volume production.
Valve Ball Manufacturing Process
Material Selection
Forged, cast or bar stock material per process and application.
Rough Forming
Forging, casting or welding to create the blank geometry.
CNC Machining
Precision turning, milling and drilling to final dimensions.
Grinding & Inspection
Lapping, surface treatment and full quality inspection.
OEM Valve Ball Supplier
Looking For Custom Valve Ball Manufacturing Solutions?
Contact our engineering team for OEM valve ball manufacturing, process selection, material optimization and surface treatment solutions.
Explore Our Machined Valve Balls
Discover our comprehensive range of valve balls manufactured through different processes. Each product is engineered for specific operational requirements and service conditions.
-
![Custom Valve Balls]()
Custom Valve BallsCustom valve balls can be fully customized according to customer working conditions, installation dimensions, and media characteristics, covering material selection, flow channel structure, port
-
![Precision Machined Valve Balls]()
Precision Machined Valve BallsPrecision machining of valve balls adds ultra-precision grinding, mirror polishing, and other steps on top of CNC machining. Through multiple precision processes, strict control of spherical
-

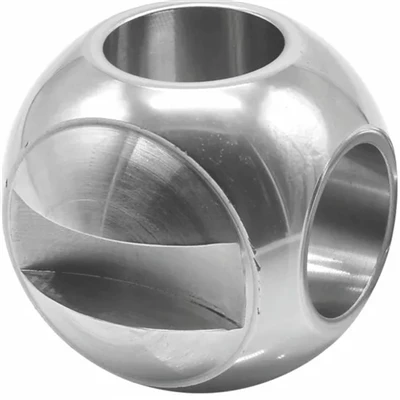

![CNC Machining Of Valve Balls]()
CNC Machining Of Valve BallsCNC machining valve balls are integrated using multi-axis CNC equipment, enabling precise batch processing of complex flow channels, irregular ports, and high-precision spherical surfaces. The
Machining Applications
Comprehensive valve ball solutions engineered for diverse industrial applications, each manufacturing process matched to specific service requirements.
High-Precision Sealing
CNC machined valve balls for bubble-tight shutoff in critical process systems requiring tight tolerances and superior sphericity.
High-Pressure Service
Forged valve balls designed for ultra-high-pressure applications up to Class 2500 with superior mechanical strength and fatigue life.
Large-Diameter Valves
Cast valve balls for large-diameter ball valves where forging is impractical, offering complex geometry and cost efficiency.
Severe Service Conditions
Welded and hardfaced valve balls for abrasive, corrosive and high-temperature media in oil & gas and petrochemical applications.
Oil & Gas Industry
Forged and CNC machined valve balls for upstream, midstream and downstream oil & gas applications requiring API 6D compliance.
Petrochemical Processing
Cast and welded valve balls for petrochemical refining with corrosion-resistant overlays and special alloy materials.
FAQ & Engineering Guide
Common Machining Questions
What is the difference between CNC machined and forged valve balls?
CNC machined valve balls are precision-turned from bar stock or forgings, achieving tight tolerances (±0.01mm) and superior surface finish. Forged valve balls are first shaped by compressing heated metal, refining the grain structure for higher mechanical strength, then CNC finished to final dimensions.
When should I choose a cast valve ball over a forged one?
Cast valve balls are preferred for large diameters (typically above 24 inches) where forging is impractical or cost-prohibitive. Casting also enables complex internal geometries. For high-pressure or critical service, forged balls are recommended due to their superior structural integrity.
What surface treatments are available for welded valve balls?
Welded valve balls can be hardfaced with Stellite, tungsten carbide or chrome oxide overlays for abrasion resistance. Cladding with Inconel or Hastelloy provides corrosion resistance for sour gas and chemical service. The base material can be carbon steel, stainless steel or duplex stainless.
Which manufacturing process is most cost-effective?
Cost-effectiveness depends on quantity and size. For small to medium valve balls in high volume, casting offers the lowest unit cost. For medium quantities requiring high precision, CNC machining from forgings is optimal. For severe service, welded hardfacing adds cost but extends service life significantly.
What is the typical lead time for each machining method?
CNC machined valve balls typically have the shortest lead time (2-4 weeks) as material is readily available. Forged balls require die preparation (4-8 weeks). Cast balls need pattern making (6-10 weeks for first article). Welded balls depend on overlay specification (4-6 weeks). Rush production is available for all processes.
